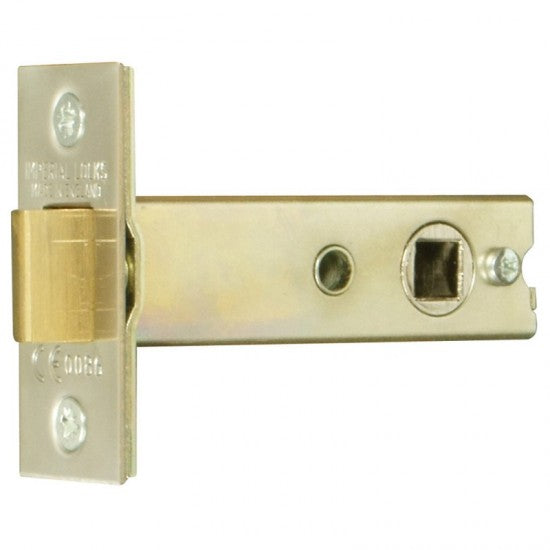

Heavy Duty Tubular Mortice Latch - G4060

This is a heavy duty tubular shaped mortice latch and can be operated by a lever handle or door knob from either side.

Made in the UK by Guardian Locks, this latch is available in various sizes and in many finishes and with matching rebate kits.

Typically used on internal doors, this latch can be used for heavy door knobs or unsprung door handles, light springing available upon request. It also has a two way action meaning you can turn the door knob either way to retract the latch bolt.

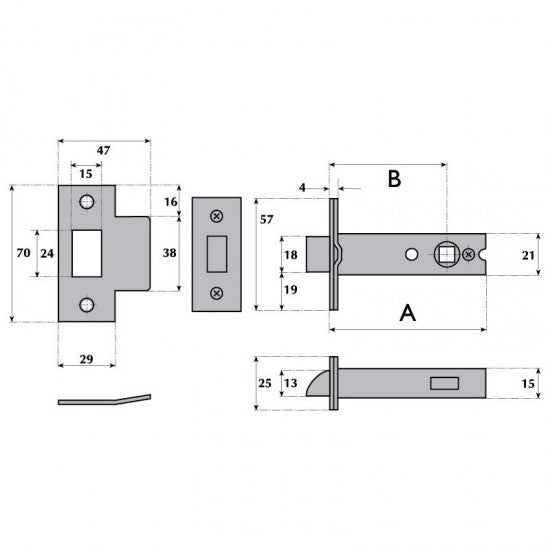

Lockcase Backset

70mm 45mm

80mm 60mm

100mm 75mm

127mm 100mm

151mm 130mm

The backset is the distance from the edge of the door to the centre of the handle (spindle hole).

These latches have an 8mm brass follower for the spindle and come double sprung as standard.

If you require a rebate kit for these latches please contact us and we can advise of the correct part number.

These latches come with a 10 year mechanical warranty and are CE approved products.

Please allow approximately 3 - 5 weeks for us to deliver this product. Delivery times may vary based on manufacturer stock levels.

We will contact you via email if your product exceeds the expected lead time found here.

If you require more accurate lead time information, please contact us.
